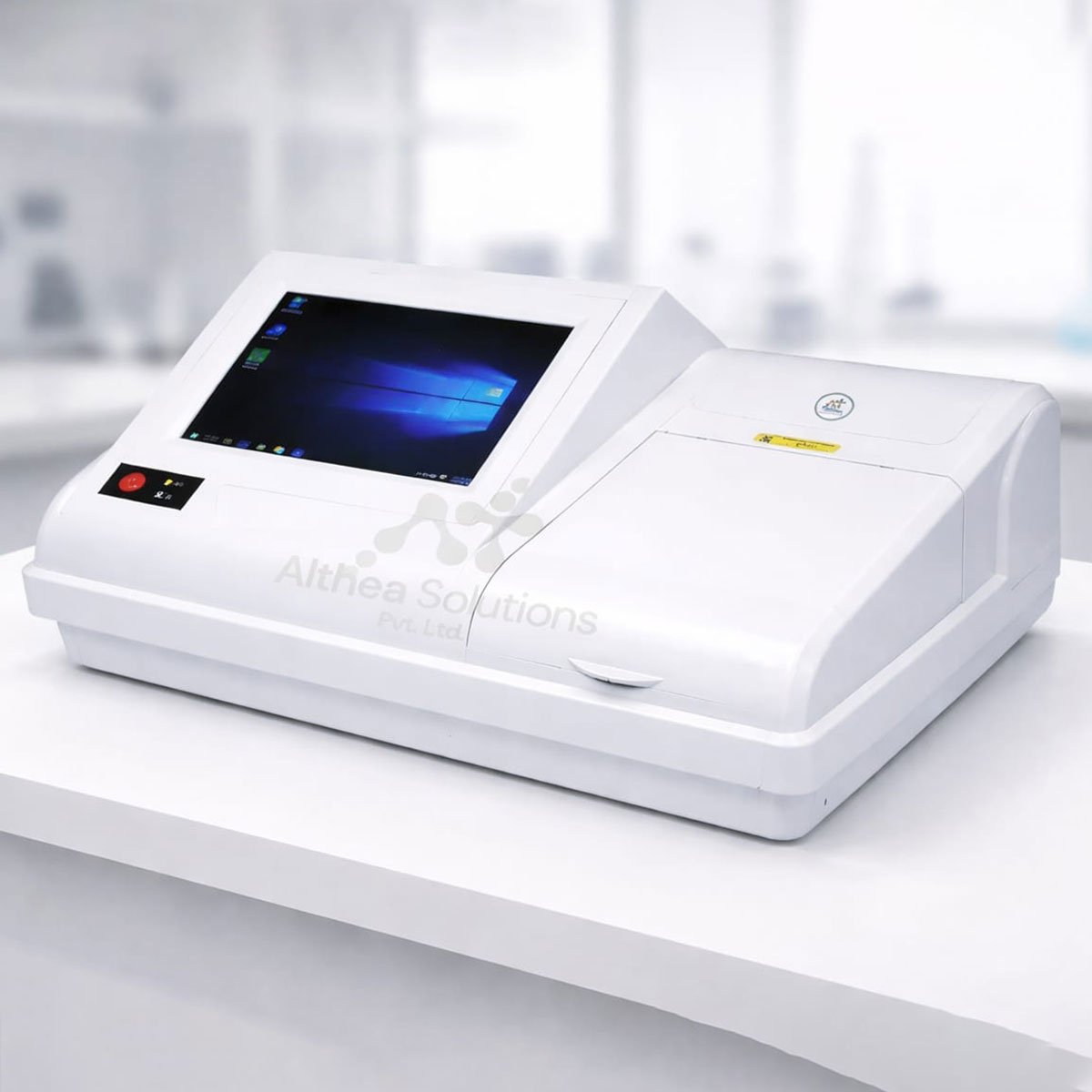

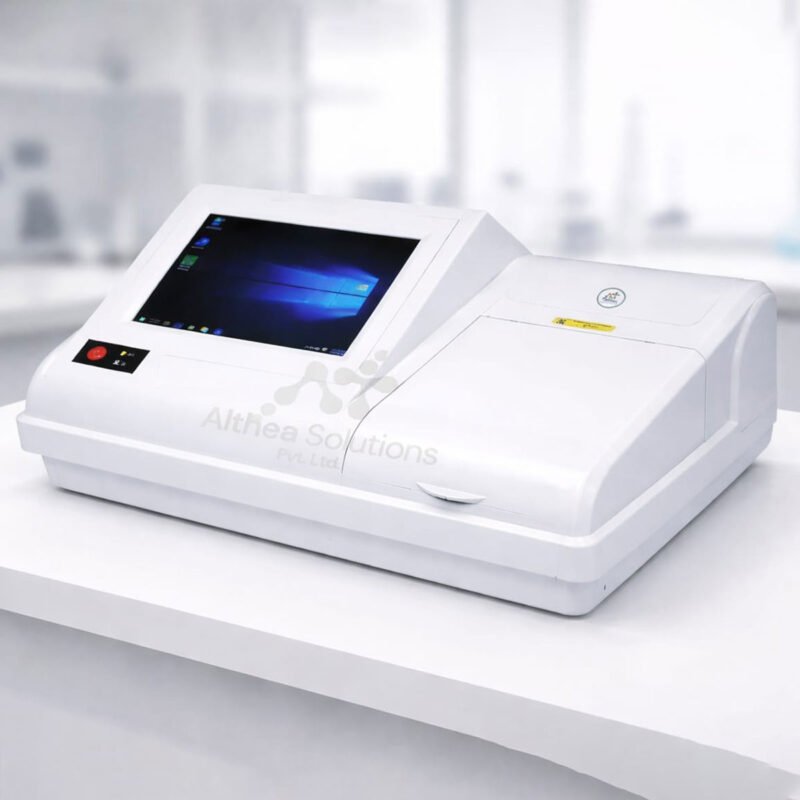

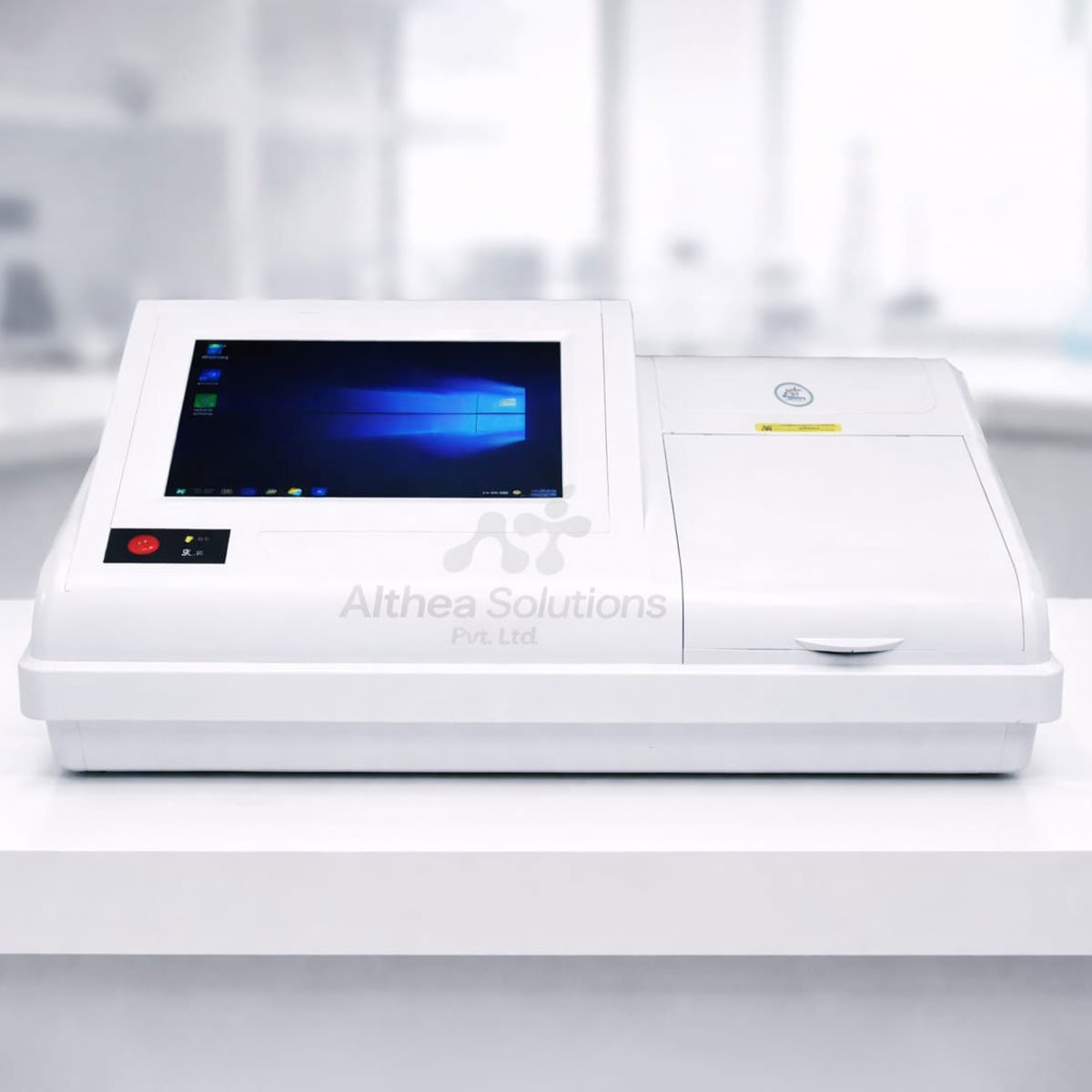

Microplate ELISA Reader

Advanced Multi-Wavelength Immunoassay Analysis System

Althea Solutions introduces the Microplate ELISA Reader – Model ALH-1260, a robust and precision-engineered laboratory instrument specifically designed for the rapid and accurate analysis of ELISA-based assays across 96-well microplates. Engineered with an advanced optical detection system and multi-wavelength capability, the ALH-1260 ensures exceptional measurement accuracy, repeatability, and reliable performance across industries including clinical diagnostics, pharmaceuticals, biotechnology, food testing, and research laboratories.

Available with multiple measurement modes, built-in data processing software, graphical curve display, and versatile connectivity options, this ELISA reader is extensively tested for laboratory reliability and is manufactured to meet demanding quality-control standards for routine analytical and QA/QC applications.

Enquire Now
Download Brochure

Description

Key Features

Multi-Wavelength Detection System

Supports single, dual, and multiple wavelength measurements across a 400–750 nm range for flexible assay analysis.

High-Speed Measurement

Reads a full 96-well plate in less than 3 seconds (single wavelength) for efficient high-throughput testing.

Advanced Optical Filters

Equipped with standard filters at 405, 450, 492, and 630 nm, expandable up to 8 filters.

Touch Screen Interface

Large 8-inch display with built-in system showing complete plate results and calibration curves

Flexible Calculation Methods

Includes absorbance, single-point calibration, linear regression, quadratic curve, and 4-parameter curve fitting

Data Storage & Management

Stores over 300 test programs and up to 100,000 results for efficient tracking and reporting.

Additional Technical Highlights

Measurement Modes

Supports single wavelength, dual wavelength, two-point method, dynamic assay, and multi-wavelength analysis.

Data Visualization

Displays complete microplate layout along with calibration curves on the screen.

Optical Performance

High precision optical system ensures consistent and reproducible readings.

System Integration

Compatible with external keyboard, mouse, and data export interfaces.

Construction

Durable laboratory-grade design for stable long-term usage.

Applications

Clinical Diagnostics: Reliable detection of hormones, antibodies, and proteins for diagnostic accuracy.
Pharmaceutical Testing: Supports drug validation, assay development, and quality control processes.
Biotechnology Research: Ideal for ELISA workflows, biomarker studies, and analytical research.
Food & Environmental Analysis: Suitable for detecting contaminants, toxins, and residues.
Quality Control Monitoring Ensures consistency, compliance, and accuracy in laboratory testing processes.

Product Models & Specifications

Model	Plate Type	Wavelength Range	Measurement Range	Light Source
ALH-1260	96-Well	400–750 nm	0.0000–4.5000 Abs	Halogen Lamp

Standard Accessories

Main instrument
96-well plates (2 nos.)
Software
USB cable
Power adapter
Keyboard
Main lead
Instruction manual

Technical Specifications

Light Source: 6V, 10W tungsten halogen lamp
Lamp Life: Over 5000 hours
Optical Filters: 405, 450, 492, 630 nm (expandable up to 8 filters)
Measurement Speed: <3 seconds (single wavelength), <9 seconds (dual wavelength) per 96 wells
Resolution: 0.0001 Abs
Linearity: ±0.5% or <0.025 Abs
Repeatability: ±0.0025 Abs or <0.1%

Blank Modes: Single well, multiple wells, row and column blanking
Storage Capacity: 300 test programs, 100,000 results
Interface: USB ×4, RS232, VGA, keyboard & mouse support
Power Supply: 12V DC (100–240V input range)
Operating Temperature: 5°C to 40°C
Dimensions: 525 × 420 × 260 mm
Weight: 9 kg

Trusted Performance, Certified Quality

Althea Solutions’ Microplate ELISA Reader ALH-1260 is manufactured under stringent quality-control protocols-delivering laboratory-ready reliability with assured analytical precision and operational consistency.

Why Choose Althea Solutions’ Karl Fischer Moisture Titrator?

1. Accurate ELISA Analysis: Ensures precise and repeatable results with advanced optical detection technology.
2. Built for the Laboratory: Designed for continuous use with stable performance and durable construction.
3. High Throughput Efficiency: Rapid plate reading enhances productivity in testing environments.
4. Versatile Applications: Suitable for diagnostics, pharmaceuticals, research, and quality control laboratories.
5. Smart Data Handling: Large storage capacity with multiple connectivity options for seamless workflow integration.
6. Technical Support: Supported by Althea Solutions’ responsive assistance via phone, email, or service support.
