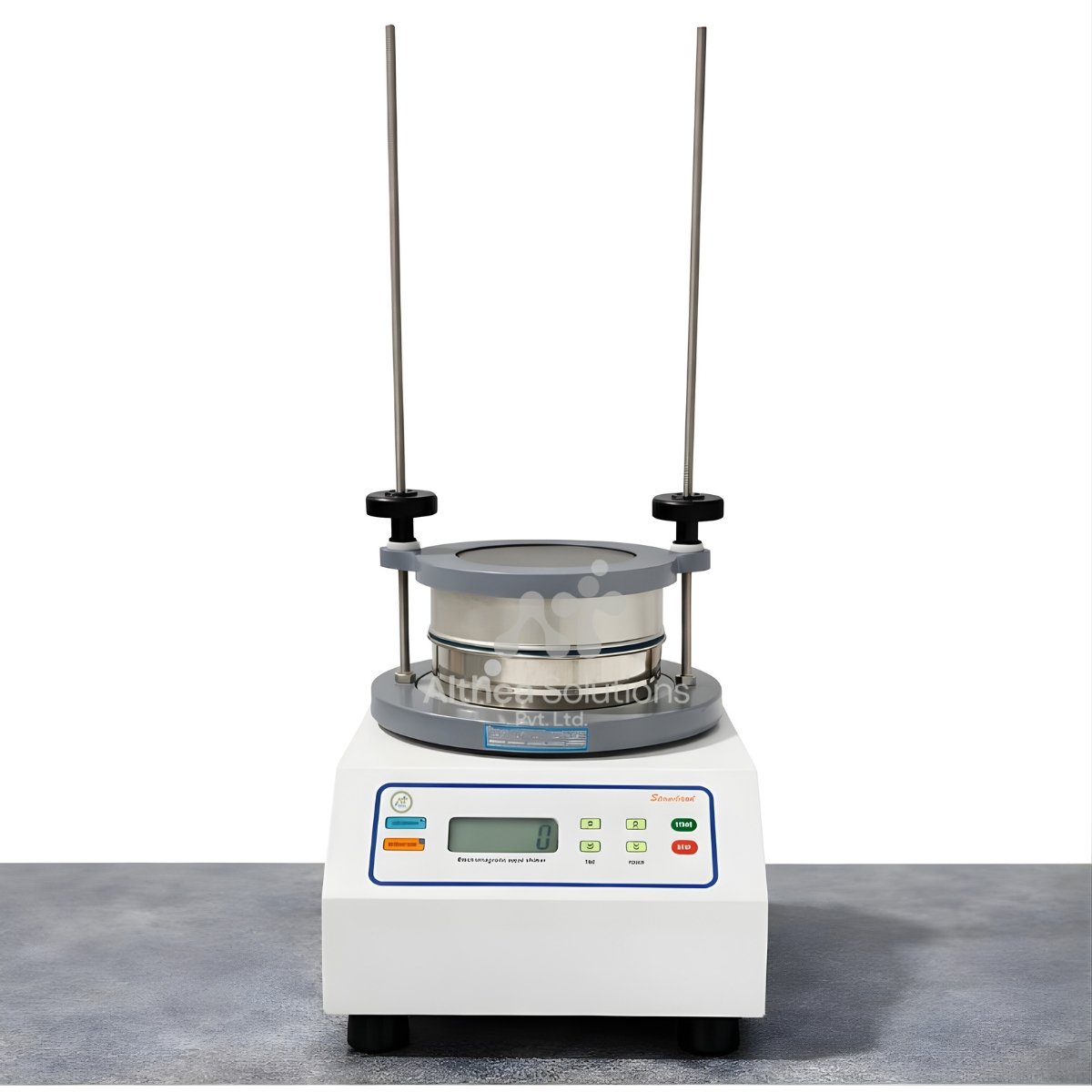

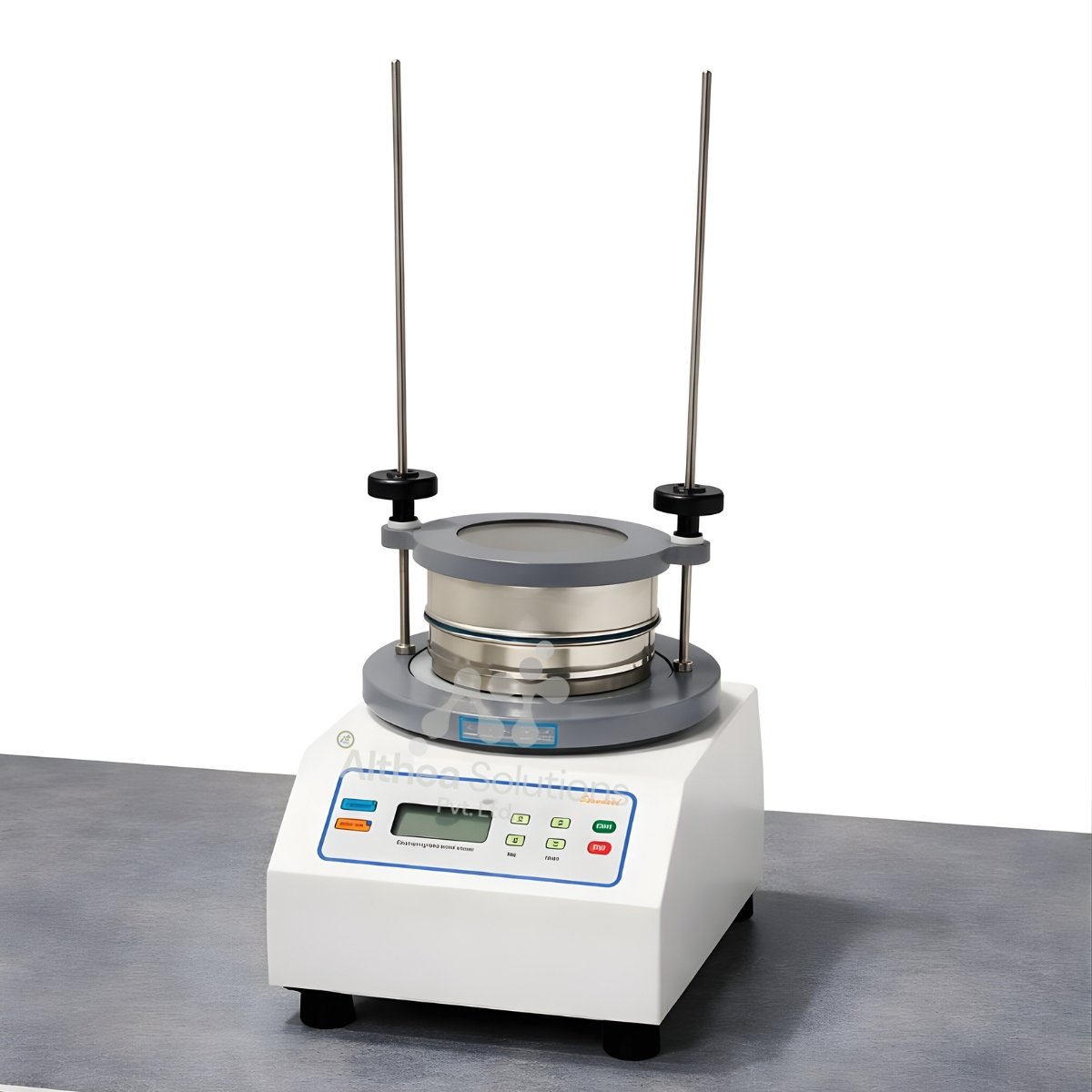

Electromagnetic Sieve Shaker

Precision Particle Size Analysis System

Althea Solutions introduces the Electromagnetic Sieve Shaker, a compact, robust, and microprocessor-controlled sieving system designed for accurate and reproducible particle size separation. Engineered for use in laboratories and on-site environments, this system efficiently handles a wide range of particle profiles-including irregular, needle-shaped, and uneven materials-across applications in pharmaceuticals, construction materials, food, mining, and research laboratories.

Equipped with a user-friendly touchscreen interface, intelligent program control, and high-speed temperature ramping, the thermal cycler delivers efficient performance for routine PCR, gradient optimization, and advanced research applications. Designed for continuous operation, the system is ideal for biotechnology, clinical diagnostics, pharmaceutical research, and academic laboratories.

Operating on the electromagnetic principle, this sieve shaker delivers consistent circular and vertical vibrations, ensuring complete material movement across the sieve surface while minimizing aperture blinding. It supports both continuous and intermittent sieving modes, making it ideal for precise granulometric testing and QA/QC procedures.

Enquire Now
Download Brochure

Description

Key Features

Electromagnetic Vibration

Microprocessor Control

Advanced digital control system with adjustable power (1–20 levels) and timer (1–99 minutes) for repeatable testing conditions.

Dual Vibration Modes

Choose between continuous operation or intermittent mode (0.5 sec delay) for enhanced sieving of complex particle shapes.

Wide Compatibility

Supports sieve diameters from 100 mm to 200/203 mm, allowing flexibility across multiple test standards and materials.

Intuitive LCD Display

20×4 screen showing real-time power and time settings for user-friendly operation.

Compact & Efficient Design

Easy-lock system allows fast loading/unloading of sieves with excellent space optimization.

Additional Technical Highlights

Vibration Type

Electromagnetic oscillation (circular + vertical motion)

Noise Level

Extremely low due to non-mechanical operation

Safety

Overcurrent protection; fuse-based electrical safety built-in

Documentation

IQ/OQ validation documentation included for GMP compliance

Ease of Use

Tool-less setup, quick-release sieve loading, and minimal maintenance required

Materials

Durable MS and aluminum construction with corrosion-resistant finish

Applications

Pharmaceutical Granulometry: Ensures uniform particle sizing of powders and granules for formulations and tableting.
Construction Material Testing: Ideal for cement, sand, soil, and aggregates analysis in civil and geotechnical labs.
Mining and Minerals: Reliable for grading ore, rock dust, and extracted mineral particles.
Environmental Testing: Efficiently sieves soil, sediments, and suspended solids for environmental and agricultural studies.
R&D and Academic Labs: Supports teaching, research, and protocol development across various scientific disciplines.

Product Models & Specifications

Model	Electromagnetic Sieve Shaker
Display	20x4 LCD Display
Power Control	Microprocessor-based; range: 1–20
Timer Range	1–99 minutes with ±0.1% accuracy
Operating Modes	Continuous & Intermittent (0.5 sec stop cycle)
Sieve Compatibility	100 mm to 200/203 mm diameter
Dimensions (L×W×H)	380 x 310 x 740 mm
Weight	48 kg
Power Supply	230V AC, 50/60Hz, 5A or 110V AC, 10A

Standard Accessories

Supporting rods (2 Nos.)
Easy lock knobs (2 Nos.)
Receiver pan
Top lid
Silicone pad
Power cord
Operating manual

Optional Attachments

Wet sieve attachment for aqueous particle separation
100 mm lid and receiver for smaller sieve stacks

Trusted Performance, Certified Quality

Althea Solutions’ Electromagnetic Sieve Shaker combines efficiency, safety, and precision with international certification standards. Built for real-world conditions and backed by expert support, it is the go-to solution for high-performance particle size analysis across industries.

Why Choose Althea Solutions’ Karl Fischer Moisture Titrator?

1. Precision Separation: Accurate, reproducible particle size separation across diverse sample types.
2. Low Noise & Maintenance: Non-mechanical vibration design offers smooth, maintenance-free operation.
3. Operator-Friendly: Easy to use, fast to configure, and intuitive display for consistent results.
4. Versatile & Adaptable: Supports dry and wet sieving with multiple sieve sizes and operational modes.
5. Backed by Warranty: Includes a 1-Year Manufacturer’s Warranty against manufacturing defects.
6. Global Support: Althea Solutions’ responsive technical team offers remote and on-site support for training, setup, and troubleshooting.
