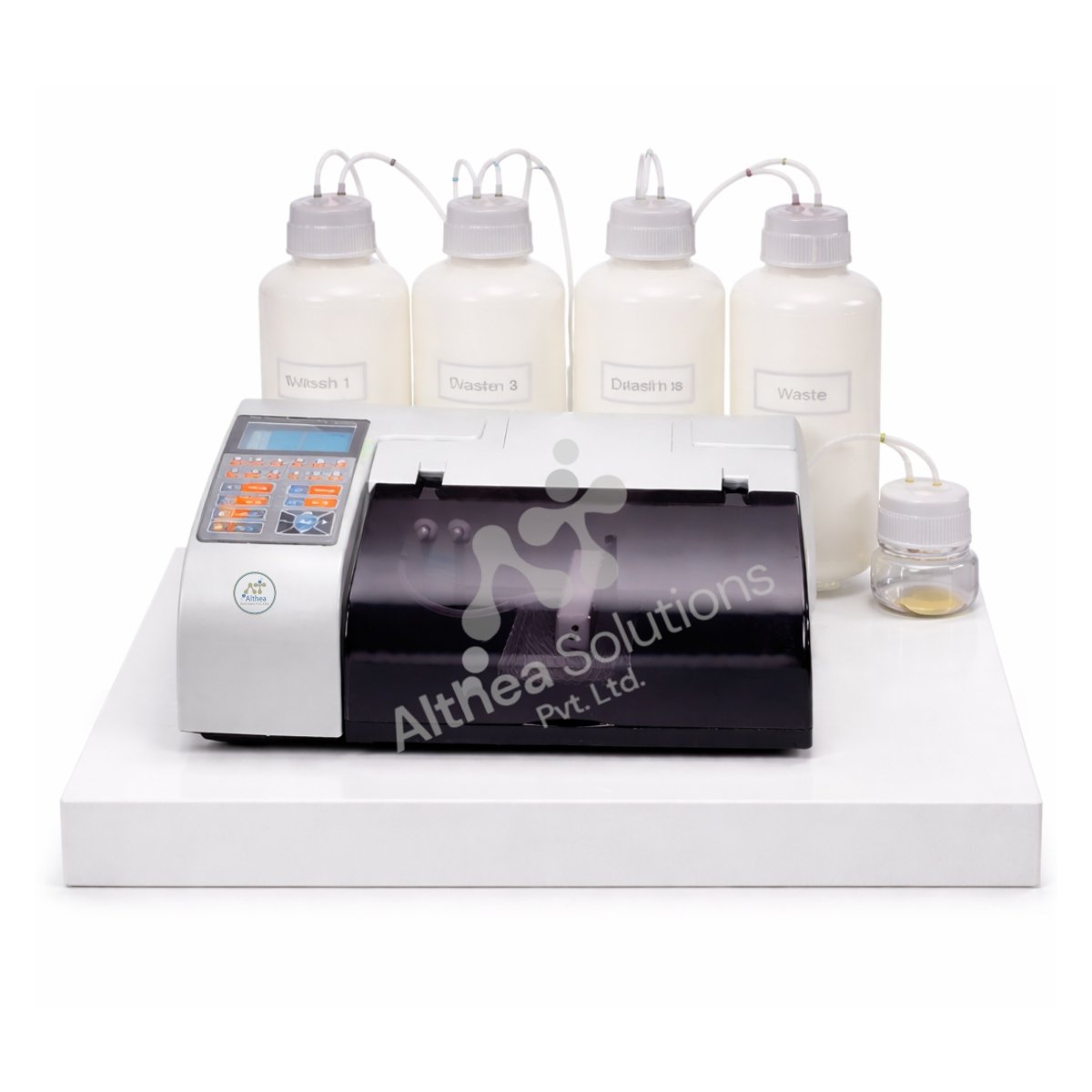

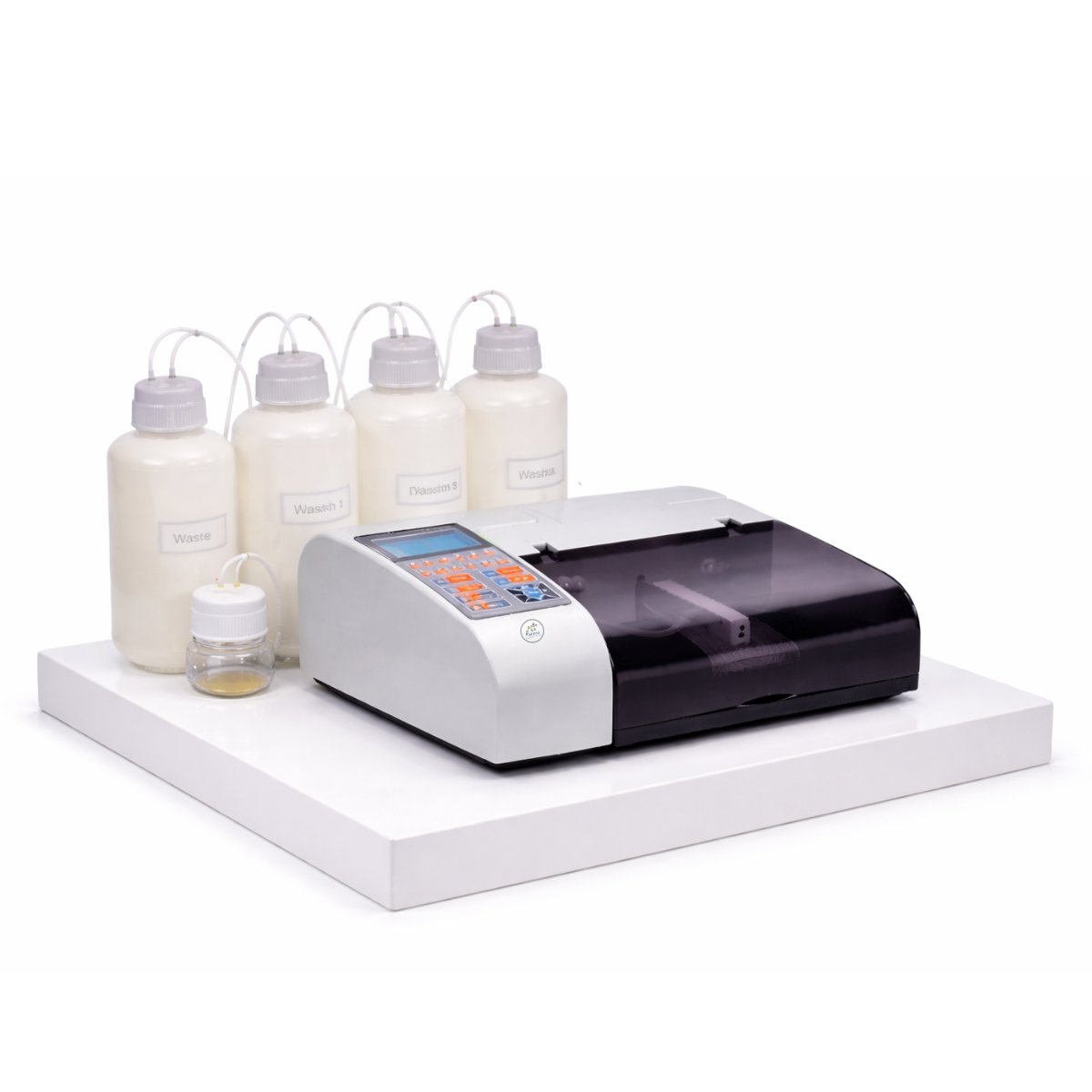

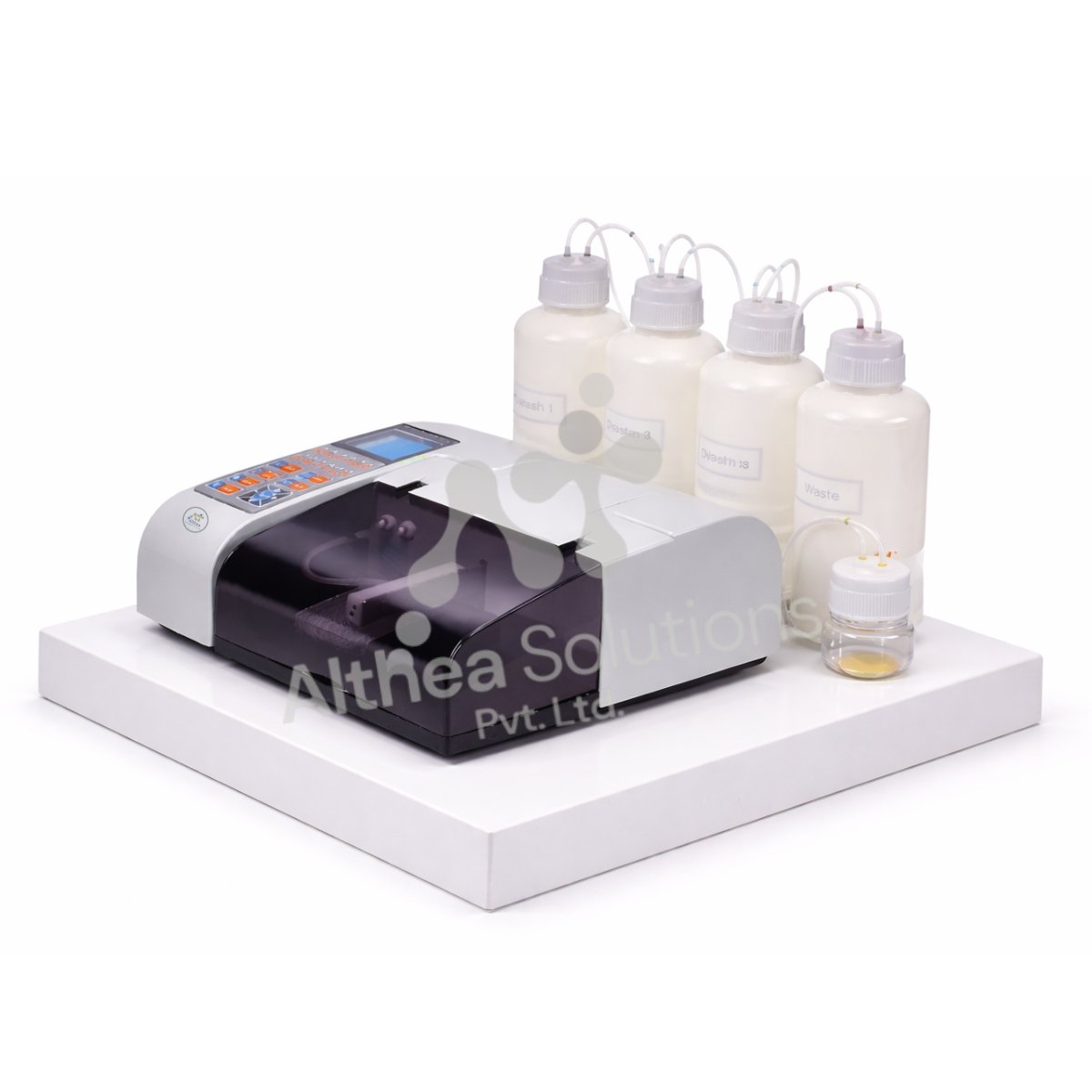

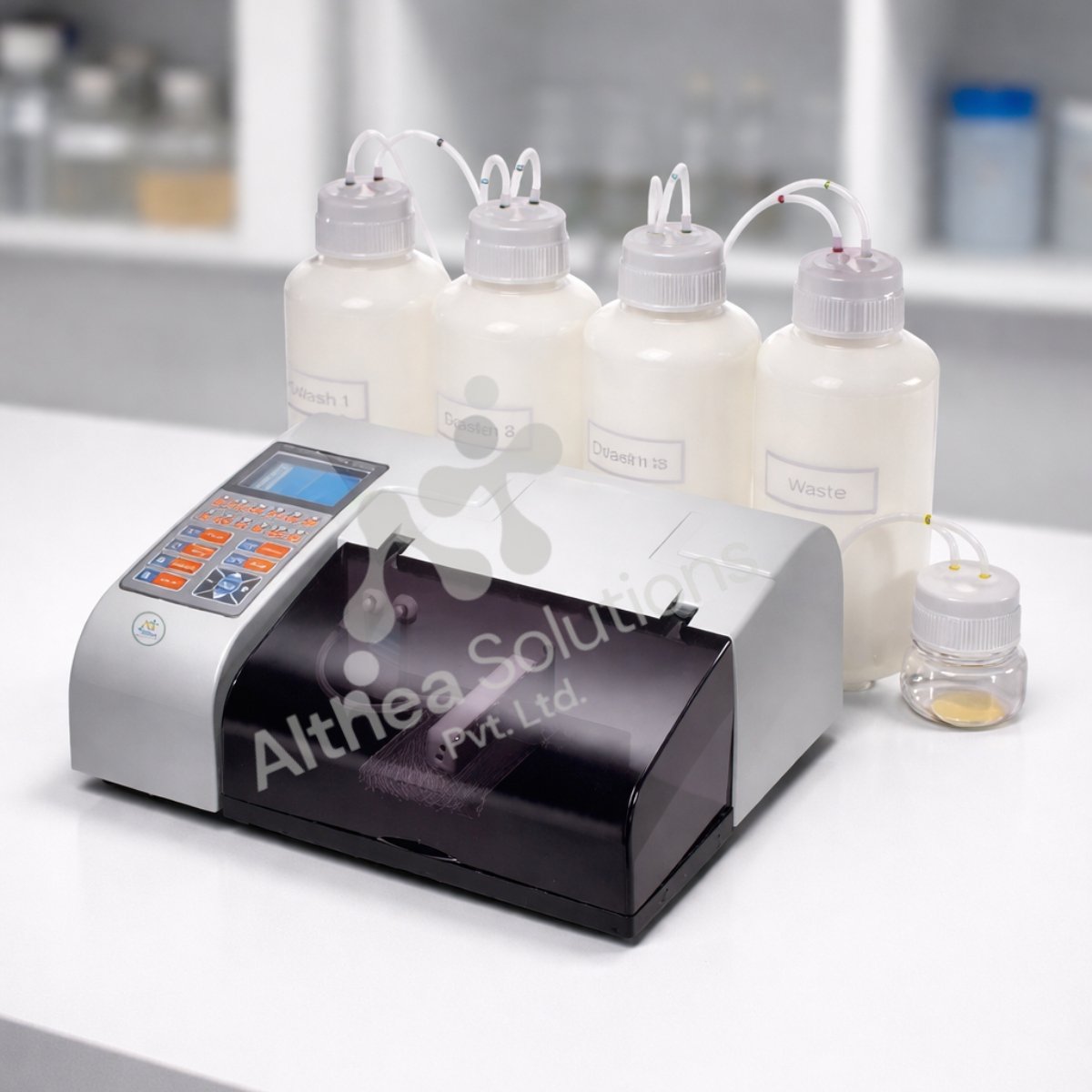

Microplate ELISA Washer

Automated Precision Microplate Washing System

Althea Solutions introduces the Microplate ELISA Washer – Model ALH-1261, a robust and precision-engineered laboratory instrument specifically designed for efficient and thorough washing of microplates used in ELISA assays. Engineered with advanced fluid control technology and intelligent washing mechanisms, the ALH-1261 ensures consistent washing performance, minimal residual volume, and reliable assay accuracy across clinical diagnostics, pharmaceuticals, biotechnology, and research laboratories.

Equipped with programmable washing cycles, adjustable dispensing parameters, and an intuitive LCD interface, this ELISA washer is extensively tested for laboratory reliability and is manufactured to meet demanding quality-control standards for routine analytical and QA/QC applications.

Enquire Now
Download Brochure

Description

Key Features

Advanced Washing System

Ensures complete and uniform washing with bottom washing and dual-position aspiration for optimal performance.

Adjustable Dispensing Parameters

Dispensing volume adjustable from 50 to 900 µl with configurable pressure, volume, and timing settings.

Flexible Channel Options

Available in 8-channel or 12-channel configurations to suit varied laboratory throughput requirements.

Programmable Wash Cycles

Supports 1–16 wash cycles with adjustable soak and shake time up to 990 seconds.

User-Friendly Interface

Large LCD display with intelligent software for easy operation and real-time monitoring.

High Memory Capacity

Stores up to 100 user-defined programs for repeatable and efficient workflows.

Additional Technical Highlights

Needle Position Control

Adjustable needle positioning with up to 10 pre-set positions for precise washing.

Washing Flexibility

Supports whole plate, single strip, row, and column washing modes.

Self-Calibration Function

Ensures consistent performance with built-in calibration and error alert system.

Efficient Liquid Handling

Equipped with multiple wash bottles and dedicated waste channels for smooth operation.

Low Residual Design

Minimizes leftover liquid to enhance assay accuracy and reproducibility.

Applications

Clinical Diagnostics: Ensures accurate washing in ELISA protocols for reliable diagnostic results.
Pharmaceutical Testing: Supports assay preparation and validation processes with consistent washing performance.
Biotechnology Research: Ideal for immunoassays, protein studies, and biomarker analysis.
Academic Laboratories: Suitable for routine ELISA workflows and research applications.
Quality Control Monitoring: Enhances assay reliability by minimizing background noise and improving result accuracy.

Product Models & Specifications

Model	Plate Type	Dispensing Volume	Residual Volume	Channels
ALH-1261	48/96 well plates	50–900 µl	≤2 µl	Halogen Lamp

Standard Accessories

4 wash bottles (2500 ml each)
Connecting tube set
Cleaning wire
Main lead
Instruction manual

Technical Specifications

Plate Compatibility: 48/96 well plates and strips (U/V flat bottom)
Residual Volume: ≤2 µl
Dispensing Volume: 50–900 µl adjustable
Wash Cycles: 1–16 selectable
Wash Modes: Row, column, or entire plate selectable
Soak Time: Up to 990 seconds adjustable
Shake Time: Up to 990 seconds adjustable

Display: Large LCD
Channels: 3 channels for washing liquid, 1 channel for waste liquid
Memory Capacity: Up to 100 programs
Interface: RS232
Power Supply: AC 220V±10%, 50/60Hz / AC 110V±10%, 50/60Hz
Dimensions: 450 × 310 × 170 mm
Weight: 7.5 kg

Trusted Performance, Certified Quality

Althea Solutions’ Microplate ELISA Washer ALH-1261 is manufactured under stringent quality-control protocols—delivering laboratory-ready reliability with consistent washing efficiency and operational precision.

Why Choose Althea Solutions’ Karl Fischer Moisture Titrator?

1. Consistent Washing Performance: Ensures uniform and reliable washing for accurate ELISA results.
2. Built for the Laboratory: Designed for routine use with durable construction and stable operation.
3. Flexible Operation: Adjustable parameters allow customization for different assay requirements.
4. Improved Assay Accuracy: Reduces background interference through effective washing and low residual volume.
5. Efficient Workflow Integration: Programmable memory and easy operation enhance laboratory productivity.
6. Technical Support: Supported by Althea Solutions’ responsive assistance via phone, email, or service support.
