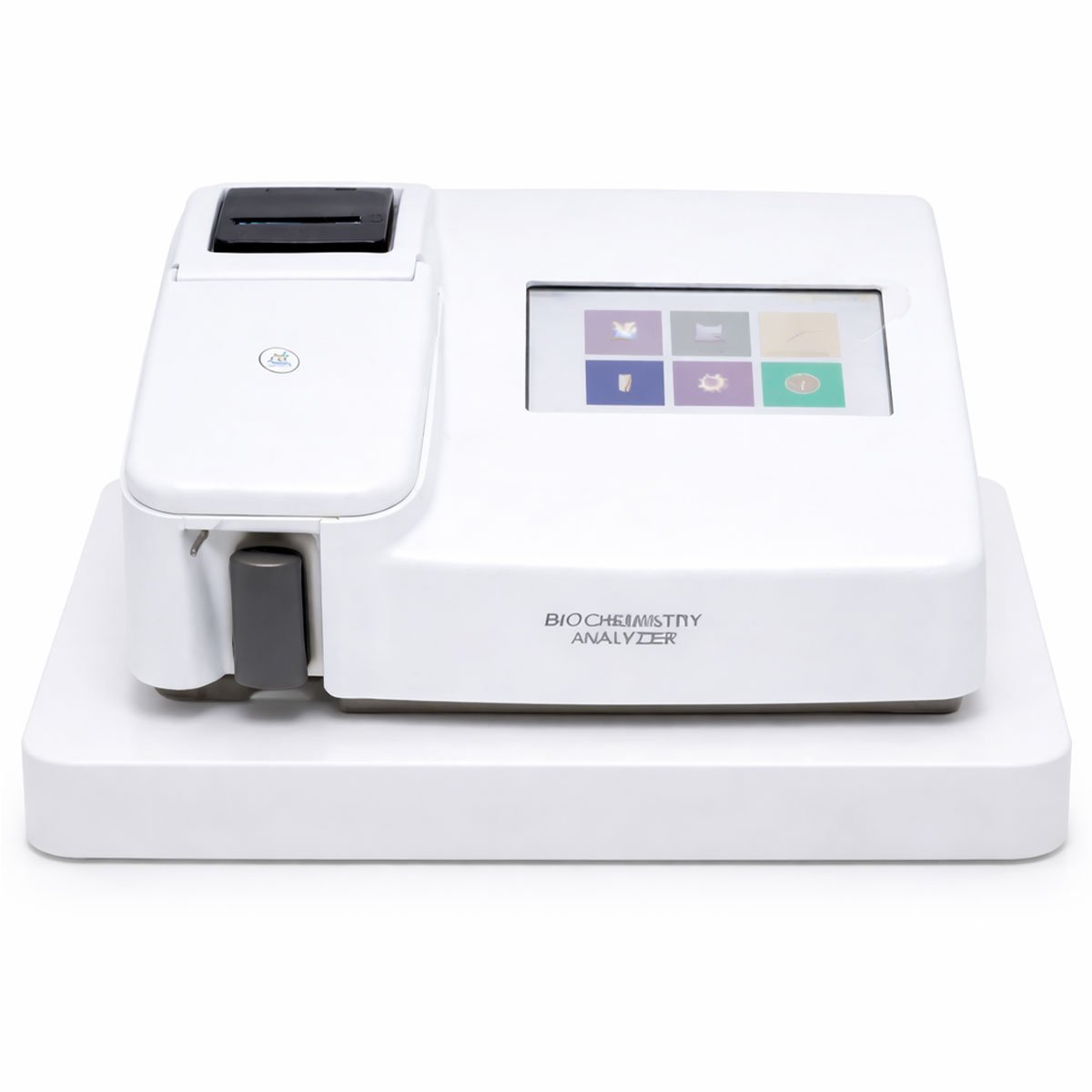

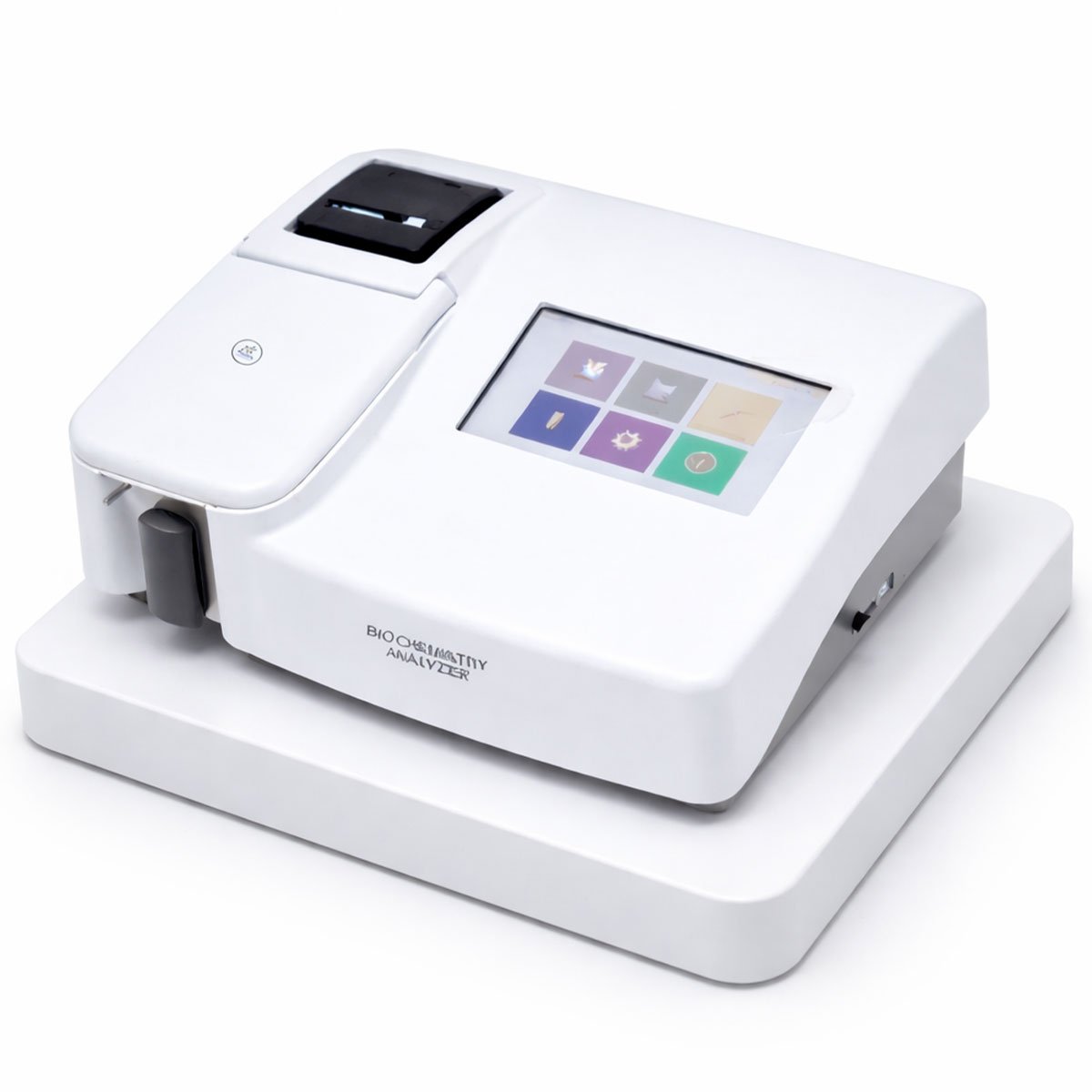

Biochemistry Analyzer

Semi-Automatic Clinical Chemistry Analysis System

Althea Solutions introduces the Biochemistry Analyzer – Models ALH BA-1200 & ALH BA-1201, a robust and precision-engineered laboratory instrument specifically designed for the rapid and accurate analysis of clinical chemistry parameters in blood, serum, plasma, and other biological samples. Crafted with advanced photometric technology and a high-precision optical system, these analyzers ensure exceptional measurement accuracy, repeatability, and stable performance across industries including hospitals, pathology laboratories, pharmaceuticals, research laboratories, and academic institutions.

Available with multiple test methods, programmable parameters, graphical curve display, and data storage capabilities, these biochemistry analyzers are extensively tested for laboratory reliability and are manufactured to meet demanding quality-control standards for routine diagnostic and QA/QC applications

Enquire Now
Download Brochure

Key Features

Photometric Analysis System

Equipped with interference filter technology for precise and reliable absorbance measurement.

Multiple Test Modes

Supports end point, kinetic (fixed time), multipoint, and coagulation analysis.

Wide Absorbance Range

0.0000 to 3.0000 Abs with high resolution and repeatability

Touch Screen Interface

7-inch color display showing real-time absorbance and graphical results.

High Test Capacity

Up to 300 programmable test parameters for versatile laboratory applications.

Data Storage

Stores up to 2,00,000 results with editable patient information and QC data.

Additional Technical Highlights

Real-Time Monitoring

Displays absorbance curves and reaction progress during testing.

Automatic Wavelength Selection

Filter wheel system for accurate and flexible operation.

Carryover Prevention

Air column system minimizes sample contamination.

User-Friendly Interface

Menu-driven software with keyboard and mouse compatibility.

Stable Performance

Designed for consistent and reliable laboratory use.

Applications

  • Clinical Diagnostics:
    Ideal for Reliable testing of glucose, cholesterol, liver enzymes, and kidney function parameters.
  • Hospital & Pathology Labs:
    Suitable for routine diagnostic workflows and patient monitoring.
  • Pharmaceutical Testing:
    Supports drug research, validation, and quality control.
  • Research & Academic Laboratories:
    Ideal for biochemical studies and analytical applications.
  • Quality Control Monitoring:
    Ensures consistency and accuracy in laboratory testing processes.
Enquire Now

Product Models & Specifications

Model

Type

Ultrasonic Power

Test Capacity

Printer
ALH BA-1200 Semi-Automatic 7” Touch Screen Up to 300 Inbuilt
ALH BA-1201

Semi-Automatic

7” Touch Screen

Up to 300

Inbuilt

Standard Accessories:

  • Main instrument
  • Printer paper roll
  • Removable cuvette
  • Optical mouse
  • External keyboard
  • AC adapter

Technical Specifications

  • Test Methods: End point, kinetic, multipoint, multi-standard, coagulation
  • Optical Principle: Photometric analysis with interference filter
  • Absorbance Range: 0.0000–3.0000 Abs
  • Resolution: 0.0001 Abs
  • Repeatability: ±0.001 Abs
  • Wavelengths: 340, 405, 450, 505, 546, 578, 630 nm (+2 optional)
  • Light Source: 6V, 10W tungsten halogen lamp
  • Detector: Photodiode
  • Temperature Control: Peltier system (25°C, 30°C, 37°C & RT), accuracy ±0.3°C
  • Flow Cell: Quartz 32 µl, 10 mm path length
  • Suction System: Peristaltic pump with anti-carryover air column
  • Display: 7-inch color touch screen
  • Printer: Inbuilt thermal printer (optional external)
  • Storage Capacity: Up to 2,00,000 results
  • Operating Conditions: 10°C–37°C, <85% RH
  • Power Supply: 100–240V AC (auto adaptation)
  • Dimensions: 400 × 300 × 160 mm
  • Weight: Approx. 6 kg

Trusted Performance, Certified Quality

Althea Solutions’ Biochemistry Analyzer ALH BA-1200 & ALH BA-1201 is manufactured under stringent quality-control protocols-delivering laboratory-ready reliability with assured analytical precision and operational consistency.
Enquire Now

    Why Choose Althea Solutions’ Biochemistry Analyzer?

    • 1. Accurate Clinical Testing: Ensures precise and repeatable results with advanced photometric technology.
    • 2. Built for the Laboratory: Designed for routine use with stable performance and durable construction.
    • 3. Versatile Applications: Suitable for hospitals, labs, and research environments
    • 4. High Data Capacity: Efficient storage and management of test results.
    • 5. User-Friendly Operation: Touch screen interface with real-time display.
    • 6. Technical Support: Supported by Althea Solutions’ responsive assistance via phone, email, or service support.
