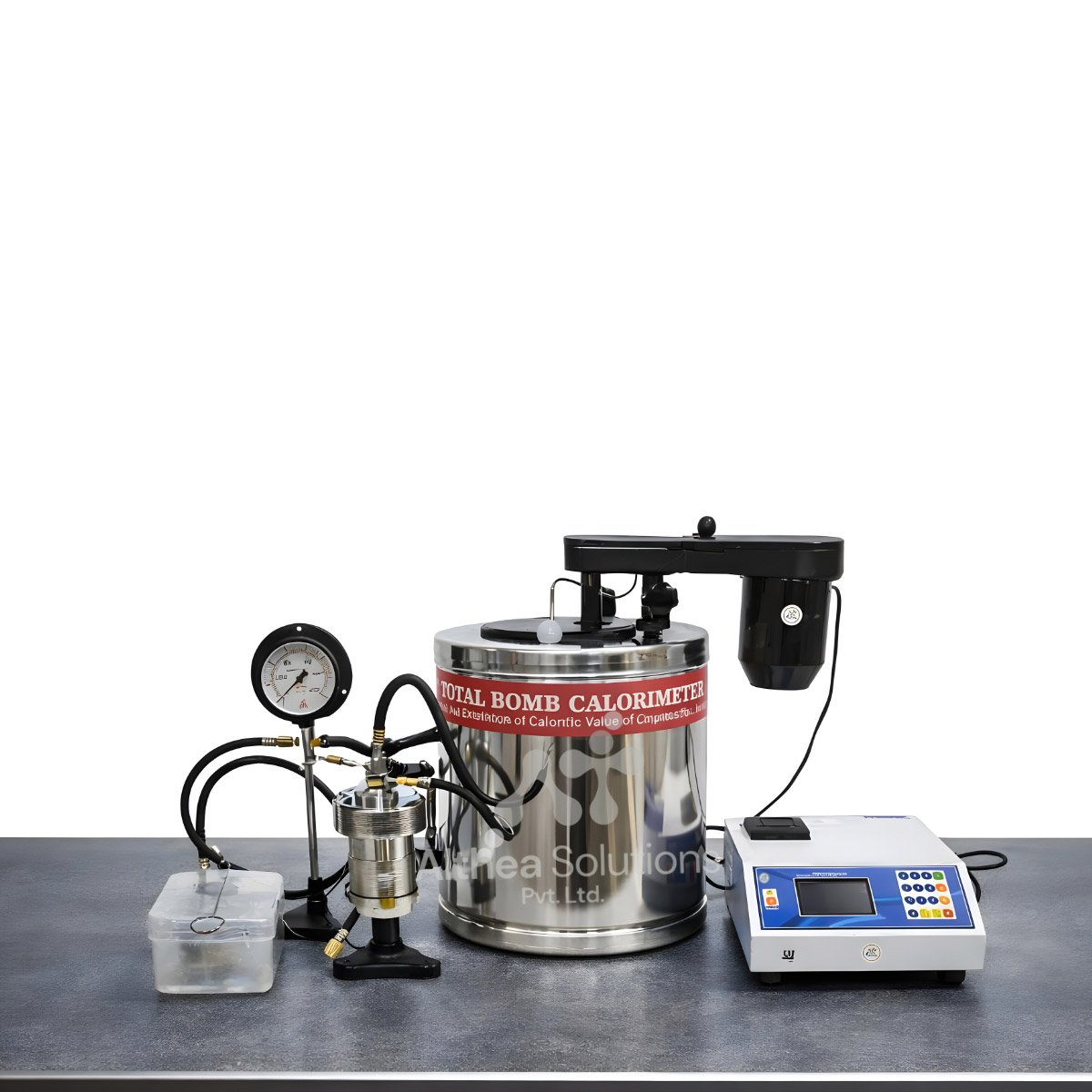

Automatic Bomb Calorimeter
Fully Automated High-Precision Calorimetry System

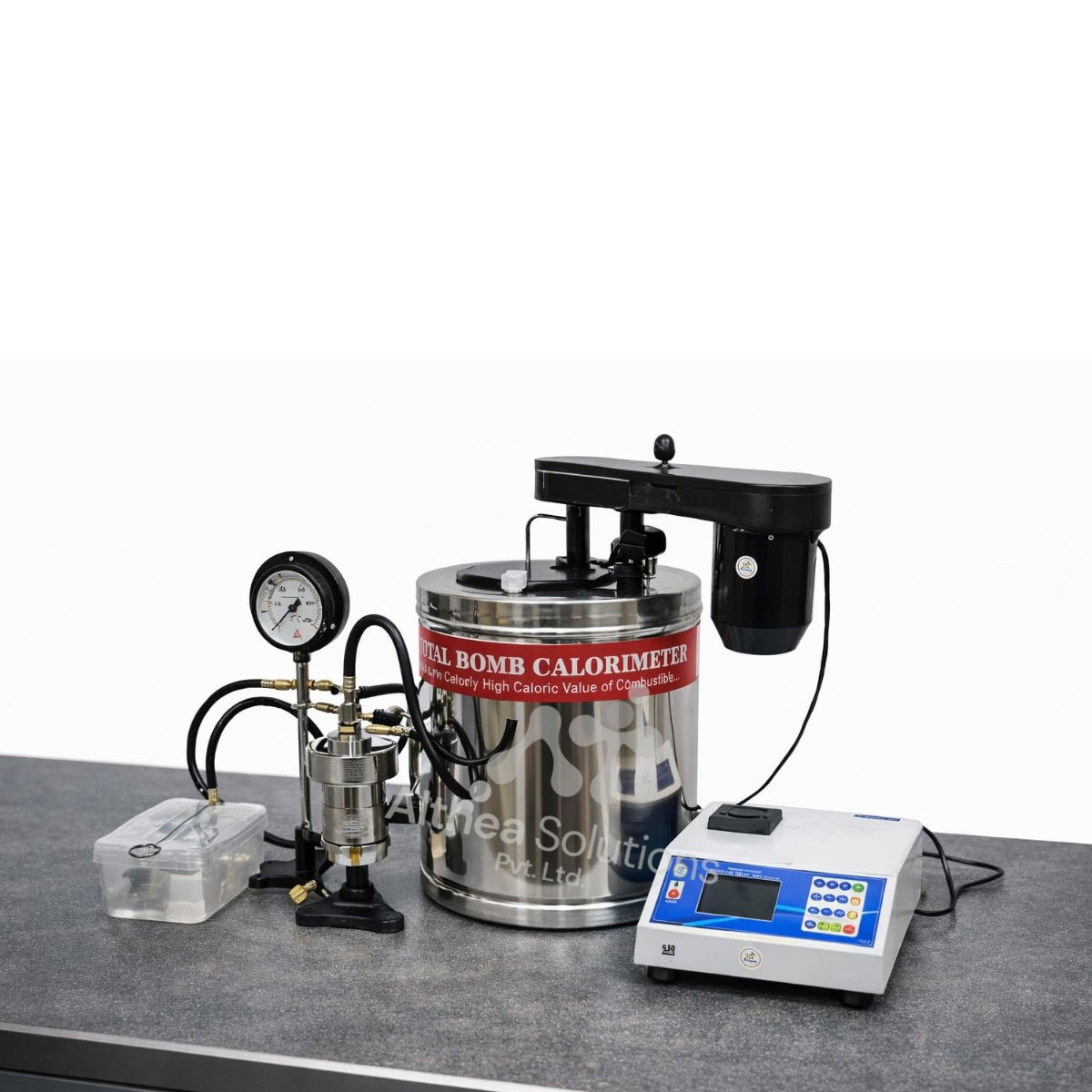

Althea Solutions introduces the Automatic Bomb Calorimeter ALH-1160, a robust and precision-engineered microprocessor-controlled system specifically designed for the accurate determination of the gross calorific value (GCV) and heat of combustion of solid and liquid fuels. Built in accordance with BS 1016 and IP 12/63 T standards, this calorimeter ensures exceptional measurement accuracy, repeatability, and ease of use across industries including petroleum, coal, chemical processing, academic research, and quality control laboratories.
Featuring an integrated thermal printer, USB connectivity, and high-resolution temperature detection, the ALH-1160 delivers fully automated analysis with minimal operator intervention. Manufactured as per BS 1016 and IP 12/63 T standards, it offers reliable, lab-ready performance with robust safety features including hydraulic pressure-tested bomb construction.
Key Features
Performs automatic sample ignition, temperature recording and calorific value calculation, reducing manual intervention and improving consistency.
Offers a temperature resolution of 0.001°C, enabling highly accurate and repeatable calorific value determination.
Features an inbuilt printer, USB connectivity and PC interface for convenient storage, retrieval and reporting of test data.
Equipped with a 128 × 64 graphical LCD display and a tactile keypad for straightforward operation and easy programming.
Includes a battery-backed clock for accurate date and time stamping of test records and reports.
Automatically detects temperature rise and fall during testing to ensure precise calorific value calculations.
Manufactured from copper (chromium-plated) or stainless steel with a bomb support arrangement that ensures stable sample positioning and reliable measurements.
High-speed belt-driven impeller operating at approximately 800 rpm provides uniform stirring without unwanted heat transfer.
Integrated digital Beckmann thermometer with automated sample ignition and continuous temperature recording at regular intervals.
Every bomb assembly is hydrostatically pressure tested to 300 atm (approximately 4400 psi) in accordance with petroleum industry standards to ensure safe operation.
Durable stainless steel outer container with integrated thermal insulation and water inlet and outlet arrangement for stable operating conditions.
Product Models & Specifications
The Automatic Bomb Calorimeter ALH-1160 has been designed for laboratories that require reliable calorific value testing with excellent repeatability. The instrument combines precision measurement, data management and ease of operation, making it suitable for routine testing and research applications.
|
Model |
Specification |
|---|---|
| Display | 128 x 64 Graphical LCD |
| Keypad | 20-key tactile interface |
| Temperature Resolution | 0.001 °C |
| Power Supply | 230 V ± 10% / 50 Hz |
| Calorific Value Measuring |
0 – 10,000 Kcal/kg |
| Range | 1000 logs with date and time |
| Memory Capacity | USB port for PC connectivity |
| Printer | Inbuilt thermal printer |
| Time Clock |
Real-time clock with battery backup |
The instrument is supplied with all essential accessories required for immediate installation and routine calorific value testing.
Trusted Performance, Certified Quality
The Automatic Bomb Calorimeter ALH-1160 is manufactured in compliance with IS 1016 and IP 12/63 standards and undergoes stringent quality checks, including hydraulic pressure testing of the bomb assembly. Designed for long-term laboratory use, it delivers dependable performance, measurement accuracy and operational safety.
Why Choose Althea’s Automatic Bomb Calorimeter?
- 1. Precision Measurement: Provides accurate and repeatable calorific value testing through automated data acquisition and advanced temperature measurement.
- 2. Built for the Lab: Constructed with robust components and pressure-tested assemblies to ensure dependable operation under routine laboratory conditions.
- 3. Suitable for Multiple Industries : Designed for applications across the petroleum, energy, chemical, manufacturing, research and academic sectors.
- 4. Easy Data Management : Includes an integrated printer, USB interface and PC connectivity for convenient recording and retrieval of test results.
- 5. Quality-Assured Performance : Manufactured under strict quality standards to deliver consistent results and reliable laboratory performance.
Frequently Asked Questions
Q1. What is an Automatic Bomb Calorimeter?
- An automatic bomb calorimeter is a laboratory instrument used to determine the gross calorific value (GCV) and heat of combustion of solid and liquid fuels by measuring the heat released during complete combustion.
Q2. How does an automatic bomb calorimeter work?
- The sample is placed inside a sealed combustion vessel filled with oxygen. Once ignited, the heat generated raises the temperature of the surrounding water. The system measures this temperature rise and automatically calculates the calorific value.
Q3. What is the use of an automatic bomb calorimeter?
- It is used to determine the energy content of fuels such as coal, biomass, petroleum products, coke and other combustible materials for quality control, research and process optimisation.
Q4. Why is temperature resolution important in a bomb calorimeter?
- High temperature resolution improves the accuracy of calorific value calculations by detecting very small changes in temperature during combustion.
Q5. Does the automatic bomb calorimeter provide data storage and reporting?
- Yes. The system includes an inbuilt printer, USB connectivity and PC interface for storing, managing and printing test data.
